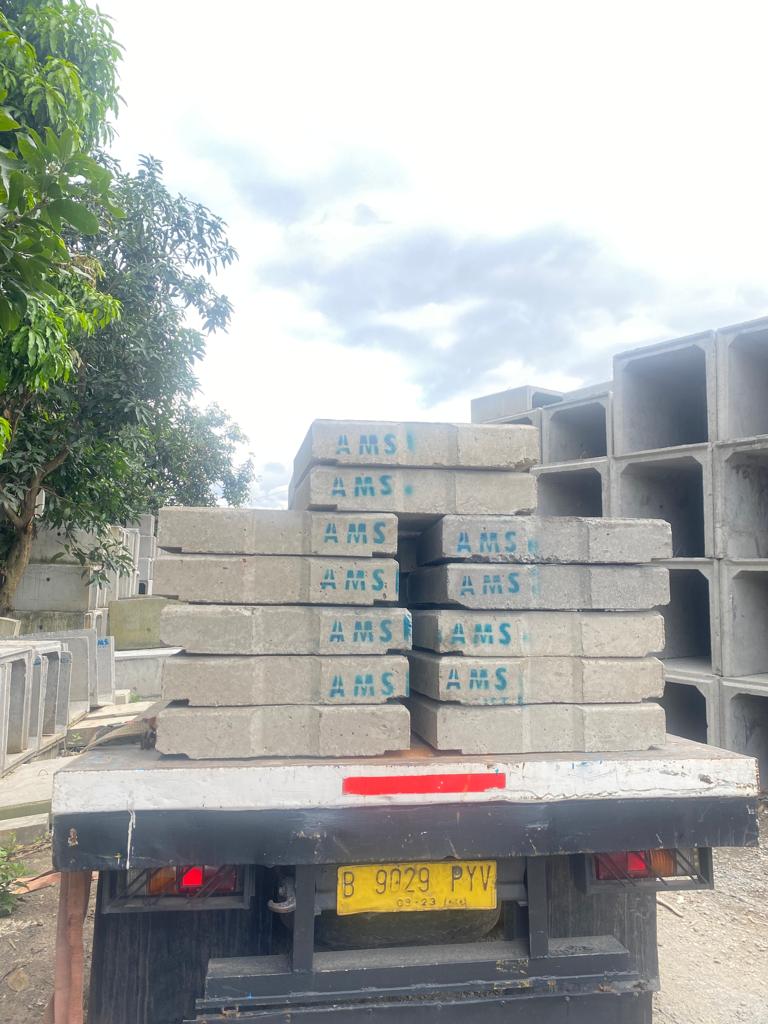

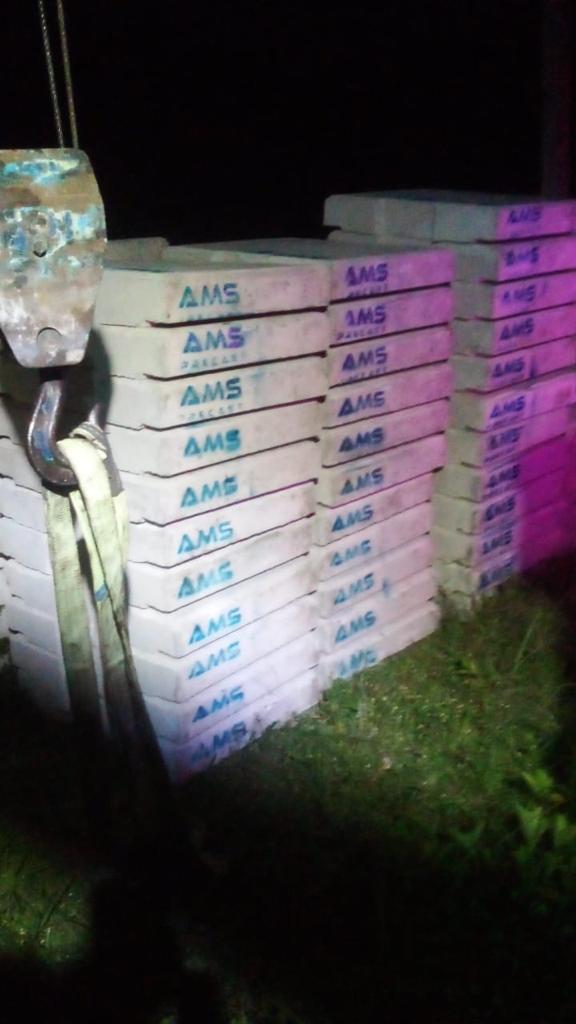

Precast Cover U-Ditch
Beton Precast Cover U-Ditch adalah beton bertulang sebagai pelengkap U-ditch, digunakan bilamana saluran terbuka tersebut perlu ditutup dikarenakan kebutuhan desain seperti:
- Diatas saluran U-ditch digunakan untuk jalur pejalan kaki (Type Heavy Duty dan Light Duty)
- Saluran U-ditch dipasang melintang akses jalan masuk jalan lingkungan atau garasi Type Heavy Duty
Spesifikasi Teknik Cover U-Ditch
Untuk spesifikasi yang ada pada AMS Precast sebagai berikut:
| Metode Produksi : | Wet Cast System, dengan getaran frekuensi tinggi |
| Mutu Beton : | K-350 |
| Baja Tulangan : | – U 50 Hard Drawn Deformed Wire (HDDW) – Tegangan Lelah > 4500 kg/cm2 – Tegangan Tarik > 5000 kg/cm2 |
| Panjang Efektif : | 600 mm |
| No | COVER U-DITCH LD AMS PRECAST | Wide | Wide | Thick | Length | Product |
|---|---|---|---|---|---|---|
| w | w1 | t | L | Weight | ||
| [mm] | [mm] | [mm] | [mm] | [kg] | ||
| 1 | Cover U-Ditch 300×600 | 390 | 290 | 80 | 600 | 45 |
| 2 | Cover U-Ditch 400×600 | 500 | 390 | 80 | 600 | 58 |
| 3 | Cover U-Ditch 500×600 | 640 | 490 | 100 | 600 | 92 |
| 4 | Cover U-Ditch 600×600 | 740 | 590 | 120 | 600 | 219 |
| 5 | Cover U-Ditch 800×600 | 950 | 788 | 120 | 600 | 164 |
| 6 | Cover U-Ditch 1000×600 | 1180 | 980 | 140 | 600 | 238 |
| 7 | Cover U-Ditch 1200×600 | 1390 | 1180 | 140 | 600 | |
| 8 | Cover U-Ditch 1500×600 | 1740 | 1520 | 140 | 600 |
* Ukuran menyesuaikan kebutuhan project
| No | COVER U-DITCH LD AMS PRECAST | Wide | Wide | Thick | Length | Product Weight |
|---|---|---|---|---|---|---|
| w | w1 | t | L | Weight | ||
| [mm] | [mm] | [mm] | [mm] | [kg] | ||
| 1 | Cover U-Ditch 300×600 | 390 | 290 | 80 | 600 | 45 |
| 2 | Cover U-Ditch 400×600 | 500 | 390 | 80 | 600 | 58 |
| 3 | Cover U-Ditch 500×600 | 640 | 490 | 100 | 600 | 92 |
| 4 | Cover U-Ditch 600×600 | 740 | 590 | 120 | 600 | 219 |
| 5 | Cover U-Ditch 800×600 | 950 | 788 | 120 | 600 | 164 |
| 6 | Cover U-Ditch 1000×600 | 1180 | 980 | 140 | 600 | 238 |
| 7 | Cover U-Ditch 1200×600 | 1390 | 1180 | 140 | 600 | |
| 8 | Cover U-Ditch 1500×600 | 1740 | 1520 | 140 | 600 |
* Ukuran menyesuaikan kebutuhan project
